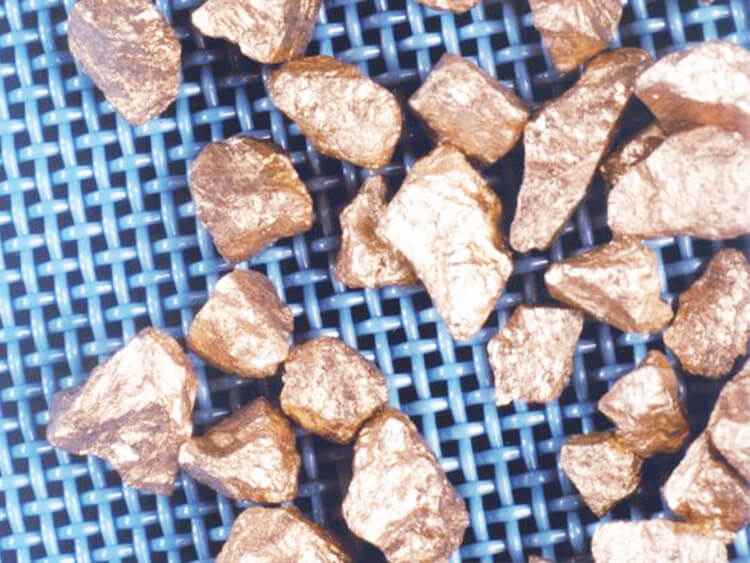

In mineral processing, metallurgy and many industrial plants, the process stream must be screened continuously to remove wood fibre, trash and oversize particles before the next stage — protecting pumps, thickeners and recovery circuits from damage and blockages. The linear screen mesh belt cloth is the screening medium that does this job: a precisely woven polyester mesh with defined apertures that separates solids from slurries with high efficiency.

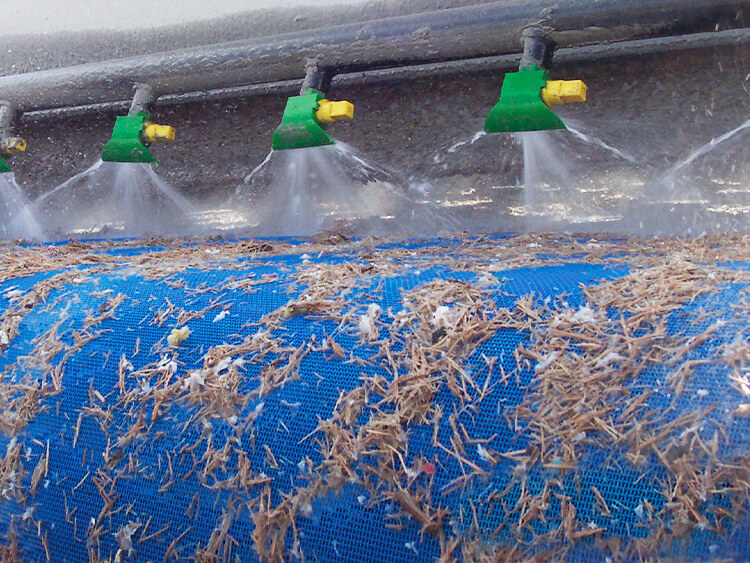

With cloth apertures from 150 to 2,000 microns, it is used successfully in pre-leach and inter-stage screening, mill-circuit screening, carbon recovery/scalping and oversize recovery — and as a safety screen for thickeners and other sensitive process equipment. In the metal processing industry it filters cooling lubricants; in gold processing it removes wood fibre and tramp oversize from milled slurries, guaranteeing high separation efficiency and optimum filtration effects even without filtration aids.

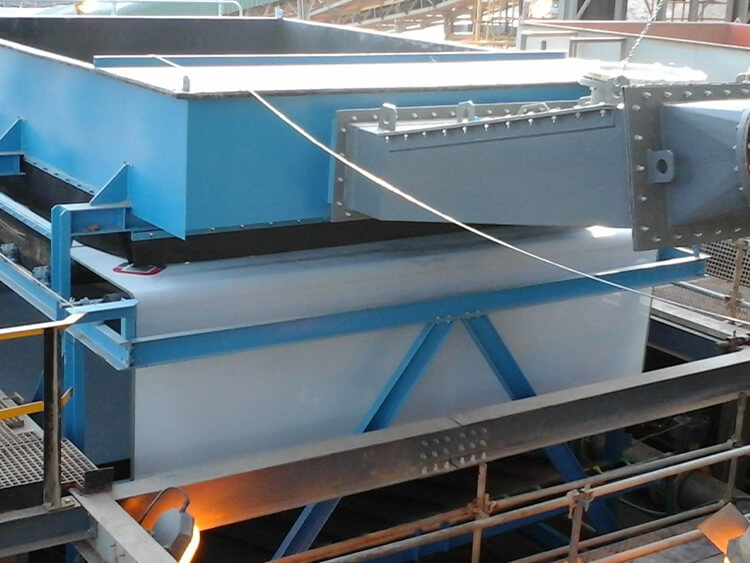

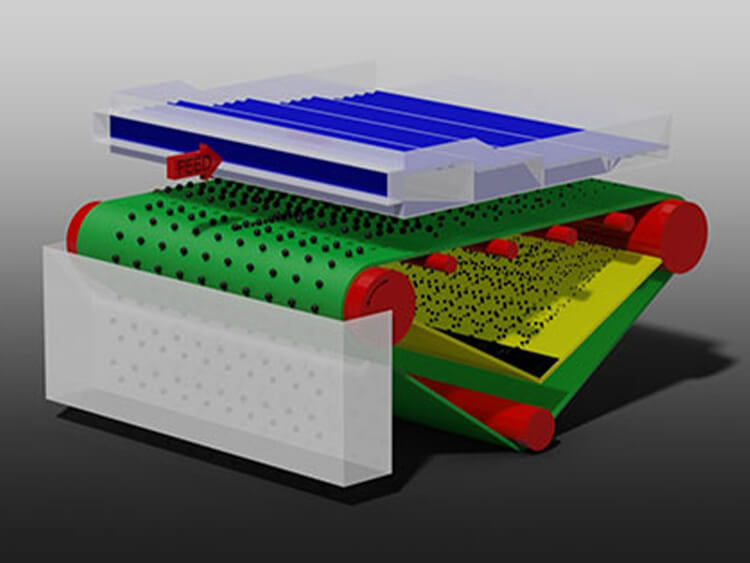

The cloth is fitted into a linear screening machine and moves continuously. Slurry flows onto the moving mesh; particles finer than the aperture pass through with the liquid, while oversize solids and trash are retained on the surface and carried away for discharge. The precisely defined apertures keep the separation cut sharp and reproducible, run after run.
Step 1 Slurry Feed Slurried ore or process liquid flows onto the moving screening cloth. | Step 2 Screening Particles below the aperture pass through; oversize is retained on the mesh. | Step 3 Oversize Removal Wood fibre, trash and tramp oversize are carried off the cloth surface. | Step 4 Clean Product Clean product or recovered carbon continues downstream, protected and on-spec. |
01 Precise Aperture Precisely defined mesh apertures from 150 to 2000 microns | 02 High Separation High separation efficiency with optimum filtration effects, even without filter aids | 03 Wear Resistant Made from wear-resistant polyester for sustainable, reproducible results | 04 Chemical Resistance Chemical resistance with customized fabrication to your process requirements |
| Mining & Raw Materials● Pre-leach and inter-stage screening● Mill-circuit screening and carbon recovery/scalping● Oversize recovery and safety screen for thickeners | Metal Processing● Filtration of cooling lubricants● Removing tramp oversize from milled gold slurries● Guaranteeing optimum filtration without filter aids |
| Fertilizers● Screening of fertilizer slurries and granules● Removing oversize and tramp material● Sustainable, reproducible separation results | Flue Gas Desulphurization● FGD process stream screening● Protecting sensitive process equipment● Grinding coolant filtration |
To deliver this separation performance, PFM Screen manufactures its linear screen mesh belt cloth from wear-resistant polyester with precisely defined mesh apertures. The cloth fulfils special mechanical and process-based requirements, offers excellent chemical resistance, and is available with customized fabrication to match your screening machine and process.
● Wide range of cloth apertures — from 150 to 2,000 microns ● Made of wear-resistant polyester ● Sustainable and reproducible results in the process | ● Excellent filtration performance from precisely defined mesh apertures ● Fulfilment of special mechanical and process-based requirements ● Chemical resistance and customized fabrication |
| Parameter | Options / Range |
|---|---|
| Cloth aperture | 150 – 2,000 microns |
| Material | Wear-resistant polyester |
| Fabrication | Customized fabrication to your screening machine |
| Chemical resistance | Excellent |
| Results | Sustainable and reproducible process results |
View Linear Screen Mesh Belt Product
Q1: What particle size range can the cloth remove? With precisely defined mesh apertures, the cloth removes particles between 150 and 2000 microns across a wide range of cloth aperture options. |
Q2: What is the cloth made of? It is made from wear-resistant polyester, providing sustainable, reproducible results with excellent chemical resistance. |
Q3: Where is the cloth typically used in mining? It is used in pre-leach and inter-stage screening, mill-circuit screening, carbon recovery/scalping, oversize recovery, and as a safety screen for thickeners and sensitive process equipment. |
Q4: Can I order a custom cloth? Yes. Customised fabrication is available to fulfil special mechanical and process-based requirements — share your aperture, width and equipment for a tailored screening cloth. |
Q5: Does it work without filtration aids? Yes. The precisely defined mesh apertures guarantee high separation efficiency and optimum filtration effects even without using filtration aids. |
