Polyester spiral mesh belts are the industry standard for this application. They not only transport the rubber threads through the ovens, they also ensure uniform heat and air exposure around every thread — making the belt a direct factor in drying efficiency, curing consistency and thread quality.
The belt runs continuously through the tunnel oven, carrying the threads through two thermal zones. Hot air passes freely through the open spiral structure, drying the threads evenly and then curing them into stable, elastic rubber threads.
Step 1 Thread Feed Fresh latex threads enter the tunnel oven on the moving spiral belt. | Step 2 Drying At 50°C – 130°C, hot air flows through the mesh, evaporating moisture. | Step 3 Curing At 100°C – 170°C the threads cure, stabilizing elasticity and durability. | Step 4 Cooling & Output Finished threads cool and travel safely to packaging stations. |
01 Big Loop Airflow Large loops maximize open area for uniform hot-air exchange | 02 Hydrolysis Resistant Special polyester yarn lasts far longer in hot, humid ovens | 03 High-Temp Stability Heat-set structure holds dimensions up to 170°C peak | 04 Antistatic Protection Conductive wires every 10 cm dissipate static charges safely |
| Feature | Specification |
|---|---|
| Material | Hydrolysis-resistant polyester monofilament |
| Operating temperature | Up to 170°C (short-term peak); continuous up to 150°C |
| Spiral loop sizes | 5 mm, 7 mm, 10 mm, 12 mm (big loop preferred) |
| Filler yarn | Optional — controls permeability and surface contact |
| Antistatic wire | Embedded every 10 cm across the belt width |
| Edge reinforcement | Heat-sealed or stitched for durability |
| Customization | Endless or pin-joined designs |
Drying Tunnels (50–130°C) ● Big loop belts for fast moisture evaporation ● Uniform hot-air exposure around every thread ● Faster drying with maximum airflow | Curing Ovens (100–170°C) ● Stable thermal resistance for elastic stabilization ● Heat-set polyester holds dimensions at high temperatures ● Consistent curing for uniform thread quality |
Combined Tunnel Ovens ● Continuous belt runs through drying + curing zones ● One belt handles the full thermal profile ● No transfer between stages | Post-Curing Conveyance ● Safe cooling and transport to packaging stations ● Smooth seamless surface protects finished threads ● Gentle thread support without damage |

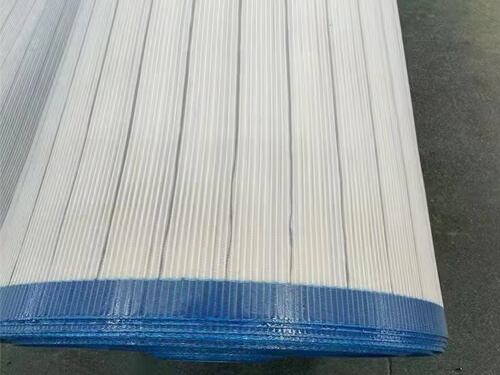

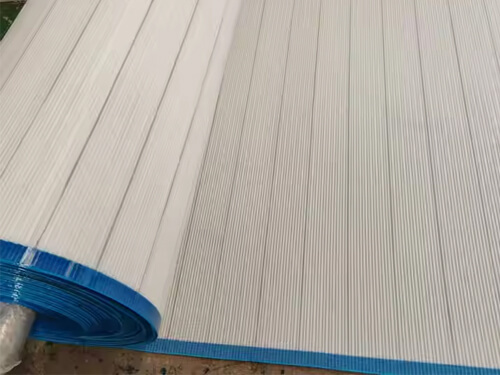

PFM Screen supplies polyester spiral mesh belts specially manufactured for latex thread lines — from customized yarn selection to high-temperature thermal treatment in production. Unlike off-the-shelf belts, these are heat-set and stabilized to maintain dimensional stability and strength at elevated temperatures.
● Excellent airflow for fast and even drying ● Stable at high temperatures with heat-set structure ● Custom design for oven widths and thread types ● Seamless, smooth surface for gentle thread support | ● Static protection through conductive wire integration ● Long lifespan in humid and thermal environments ● Hydrolysis-resistant polyester yarn ● Endless or pin-joined designs |
View Polyester Spiral Mesh Belt Product
Q1: Why use polyester spiral mesh belts for latex thread drying and curing? They combine heat resistance, air permeability and mechanical strength — transporting the threads while ensuring uniform heat and air exposure for consistent drying and curing. |
Q2: What temperature can the belt handle? Up to 170°C short-term peak and continuous operation up to 150°C — covering drying (50–130°C) and curing (100–170°C) zones. |
Q3: What is the big loop design and why is it recommended? Large spiral loops give higher open area and better airflow, letting hot air reach all sides of the thread uniformly — the most commonly used structure in rubber thread lines worldwide. |
Q4: Why is hydrolysis-resistant polyester used? Normal polyester degrades under high humidity and heat. Hydrolysis-resistant yarn significantly improves belt life in hot, moist ovens and reduces replacement frequency. |
Q5: How does the belt prevent static build-up? Antistatic conductive wires are inserted every 10 cm across the belt width, safely dissipating static charges that could affect quality or pose a fire risk. |
Q6: What loop sizes are available? Spiral loop sizes of 5 mm, 7 mm, 10 mm and 12 mm, with big loop designs preferred for maximum airflow. |
Q7: Can the belt be customized for my oven? Yes. Belts are made to your oven width and thread type, with optional filler yarns, heat-sealed or stitched edges, and endless or pin-joined designs. |
Q8: How do I get a quote? Send your oven type and temperature, belt width/length and loop size preference to polyestermesh@pfmscreen.com or WhatsApp +86 153 6967 9157 for a factory-direct quotation. |
Get a Custom Latex Thread Oven Belt Specification Within 24 Hours Share your oven type and temperature, belt width/length and loop size preference — PFM Screen will recommend the right spiral mesh belt and send a factory-direct quotation. WhatsApp: +86 153 6967 9157 Email: polyestermesh@pfmscreen.com |
