Category and attributes of paper forming fabric products

Released on Dec. 03, 2021

Paper forming fabrics are utilized in the whole paper making procedure to help to make paper.


Category and also characteristics of synthetic fiber forming fabrics.

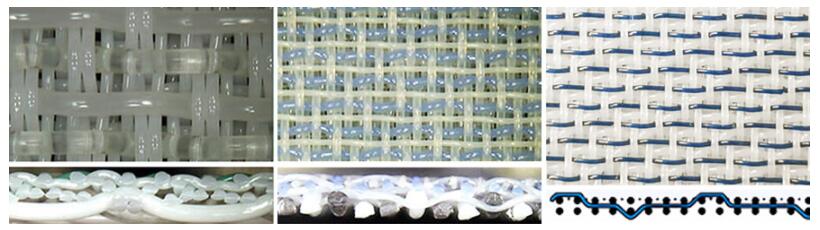

As a result of its soft material, synthetic fiber forming fabrics can be made for numerous sort of weaving. General forming fabrics in the world today, according to its structure can be roughly divided into single layer (solitary layer of woven) and multilayer (multilayer woven), multilayer includes dual (dual layer weave), 3 layer (triple layer weave), etc.


Solitary layer forming fabrics can be split into ring internet and also plug-in internet according to their knitting procedures. Ring network, likewise referred to as a limitless network, is an endless ring network that is woven directly from an impend. Its structural features are weaving, the longitudinal direction of the paper equipment (MD) for the weft, without the joint fiber yarn for dual weaving at the interface. The longitudinal direction of the plug-in mesh weaving is a warp thread, which is first knitted right into a single piece. Then, completions of the solitary item are inserted by warp strings to form an endless net.


1.5 layer forming fabrics are improved products of single-layer nets, and have actually boosted multilayer net properties by raising the density of the surface weft threads of stickers. The smoothness of the sticker label surface, pulp fiber retention, dewatering performance, and also cleansing performance are all considerably improved. The negative aspect is that it is not wear-resistant and has a brief life span. As soon as the foreign matter has fallen under the internet, the net will certainly not be fixed.

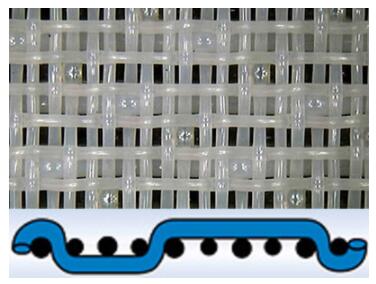

1.5-layer 5-shed with Extra Yarns


Double layer forming fabrics usually weave two layers of weft strings right into horizontal double-layer weaves. Compared with single layer forming fabrics, the warp and also weft lines have high density, as well as consequently have the qualities of hard contraction and dimensional stability. The cable diameter and material of the paper-side and machine-side weft yarns can be arbitrarily selected according to the application requirements, thereby enhancing internet scratches, surface area appearance, smoothness, and also life span. The three-dimensional area is big as well as the dewatering residential or commercial property is superior. The dewatering pressure does not straight influence the paper. As a result of this, the fiber retention rate as well as the fiber loss price are improved.

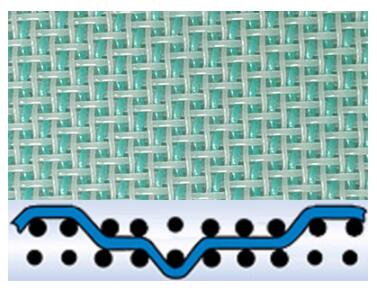

Double Layer Forming Fabric


2.5 layer forming fabrics, as an improved type of double layer forming fabrics, enhances the thickness of the sticker label surface area weft, boosts the number of paper support factors, properly enhances the internet mark and fiber retention price, and also boosts the surface buildings of the paper. The density of non-stick surface weft yarns can be lowered, to ensure that the inner three-dimensional area of the web is raised and the dewatering efficiency is enhanced.

Water drainage, forming, retention, and also the impact on the paper surface of the web are really vital in the slurry forming procedure. According to the existing water drainage idea, enhanced slurry development normally has to be at the expenditure of retention, low-dose retention helps transform the set properties, as well as it is possible to boost shaping by enhancing rough flow results. Only when the forming fabrics is at high mechanical retention, decreasing the dose will certainly work. The SSB triple layer forming fabrics has these buildings. Its qualities are: Compared with dual layer forming fabrics and also 2.5 layer forming fabrics, SSB nets with architectural weaving style have higher fiber support, and open uniformly spaced meshes have a larger area and also more Uniformly little meshes make the drain much more consistent, as well as the DC-type drainage networks also make water drainage much easier, have excellent air permeability, as well as improve the tension cross-section of the mesh.

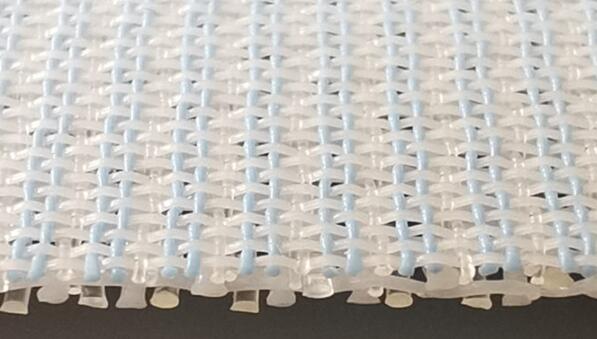

16-shed 2.5 layer forming fabrics


In the SSB network, the latitude and longitude lines of the decal side and the non-stick side are separately split according to the particular requirements, and afterwards the two layers forming fabrics are joined together with stitching threads. The surface area of the upper layer of the network is dotted with a great deal of latitude and longitude lines. It is an ultrafine mesh level fabric. The lower mesh display is much coarser (just fifty percent of the upper layer is fine), so thicker size cables can be used to boost the wear resistance of the mesh, the volume of the three-dimensional space increases, the life span is longer than the top mesh, as well as the water drainage efficiency is better. The upper line is finer, as well as the line lies specifically between the upper as well as lower layers when affixed, so it will certainly not be worn out. The variety of connection lines depends on the certain usage and needs of the forming fabrics. The net surface area cleaning performance is much better than double-layer nets, and also the variety of paper created is also a lot larger. Internet marks, surface homes, and also fiber retention can all be boosted.


Special triple layer forming fabrics are constructed and made so that the upper as well as lower meshes are the same. While preserving the initial superiority of the three-layer network, the density of the network is reduced, and also the internal gap area is minimized, so that the water retention rate of the network is reduced. As well as the web is wear-resistant and also has a long life span. The mesh can be repaired in time as soon as the international object falls into the mesh as well as creates a small hole.

Triple Layer Forming Fabric
